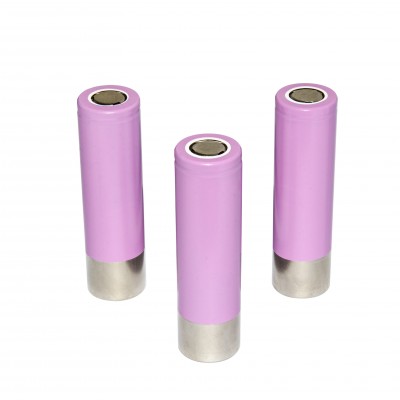

CMICR18650 F5Q |
|||||||||||
|
| Model | ICR18650F5Q | |

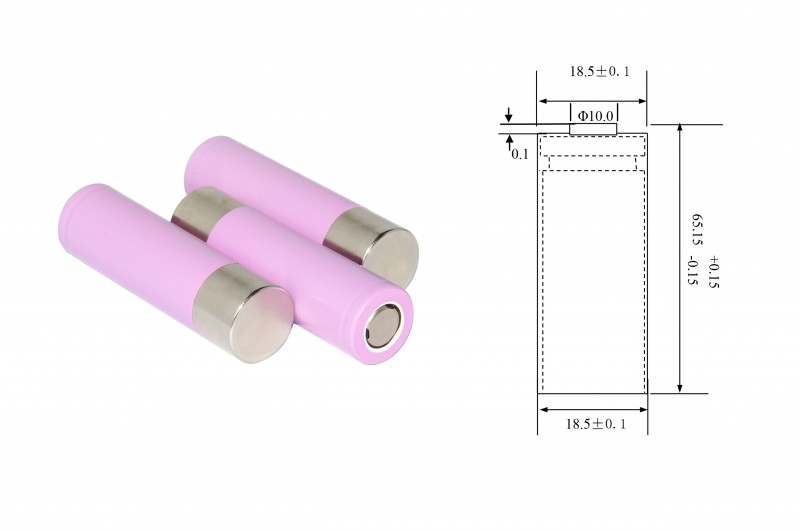

| Size | diameter | Max. 18.5mm |
| height | Max. 65.5mm | |
| Weight | Ave. 44.5g | |
| Electrochemical Impedance | Ave. 17.6mΩ | |
| Nominal Voltage | 3.6V | |
| Charging Standard | standard charge : 0.5C (constance current 4.2V) fast charge : 1C (constance current 4.2V) |
|
| Temperature | charge | 0℃ ~ 45℃ |
| discharge | -10℃ ~ 55℃ | |
| Impedance | termination voltage | 2.75V |
| the largest continued discharge current | 10A | |
| pulse current | 20A | |
| Capacity | 2.2Ah (Nominal capacity) | |
| Energy Density | Mass Energy Density | 178 Wh/kg |
| Volume Energy Density | 452 Wh/L | |
